Document Structure

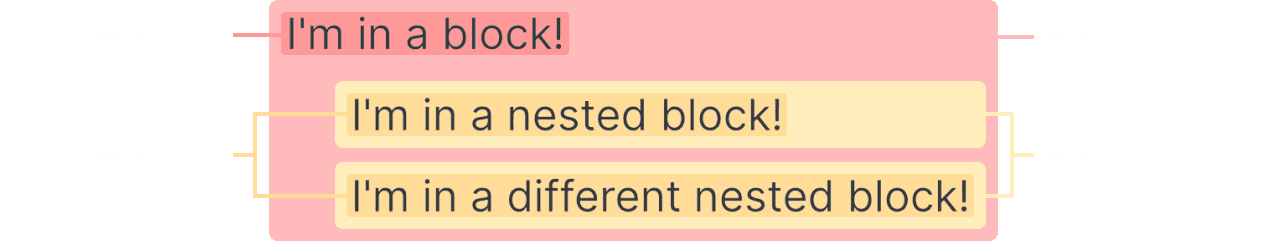

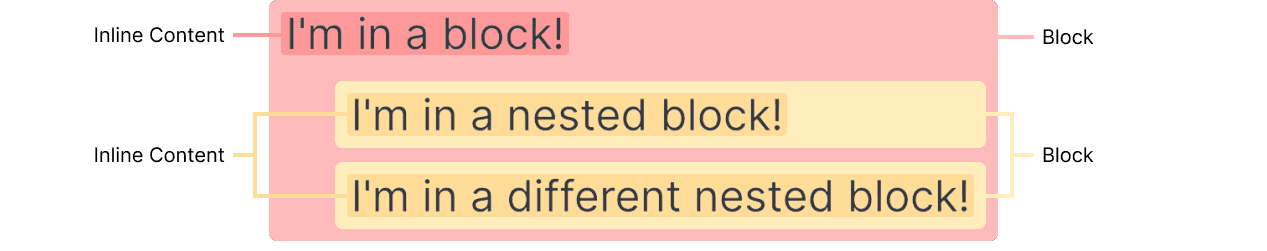

Each BlockNote document is made up of a list of blocks. A block is a piece of content like a paragraph, heading, list item or image. Blocks can be dragged around by users in the editor. A block contains a piece of content and optionally nested (child) blocks:
Blocks
The Block type is used to describe any given block in the editor:
type Block = {
id: string;
type: string;
props: Record<string, boolean | number | string>;
content: InlineContent[] | TableContent | undefined;
children: Block[];
};Block Properties
-
id: The block's ID. Multiple blocks cannot share a single ID, and a block will keep the same ID from when it's created until it's removed. -
type: The block's type, such as a paragraph, heading, or list item. For an overview of built-in block types, see Built-in Blocks. -
props: The block's properties, which is a set of key/value pairs that further specify how the block looks and behaves. Different block types have different props - see Built-in Blocks for more. -
content: The block's rich text content, usually represented as an array ofInlineContentobjects. This does not include content from any nested blocks. Read on to Inline Content for more on this. -
children: Any blocks nested inside the block. The nested blocks are also represented usingBlockobjects.
Inline Content
The content field of a block contains the rich-text content of a block. This is defined as an array of InlineContent objects. Inline content can either be styled text or a link (or a custom inline content type if you customize the editor schema).
Inline Content Objects
The InlineContent type is used to describe a piece of inline content:
type Link = {
type: "link";
content: StyledText[];
href: string;
};
type StyledText = {
type: "text";
text: string;
styles: Styles;
};
type CustomInlineContent = {
type: string;
content: StyledText[] | undefined;
props: Record<string, boolean | number | string>;
};type InlineContent = Link | StyledText | CustomInlineContent;
The `styles` property is explained below.
### Styles and Rich Text
The `styles` property of `StyledText` objects is used to describe the rich text styles (e.g.: bold, italic, color) or other attributes of a piece of text. It's a set of key / value pairs that specify the styles applied to the text.
See the [Default Styles](/docs/features/blocks/inline-content#default-styles) to learn which styles are included in BlockNote by default.
## See it for yourself
The demo below shows the editor contents (document) in JSON. It's an array of `Block` objects that updates as you type in the editor:
<Example name="basic/block-objects" />
## Special Cases
While most blocks use an array of `InlineContent` objects to describe their content (e.g.: paragraphs, headings, list items), some blocks, like [images](/docs/features/blocks/embeds#image), don't contain any rich text content, so their `content` fields will be `undefined`.
### Column Blocks
The `@blocknote/xl-multi-column` package allows you to organize blocks side-by-side in columns. It introduces 2 additional block types, the column and column list:
```typescript
type ColumnBlock = {
id: string;
type: "column";
props: { width: number };
content: undefined;
children: Block[];
};
type ColumnListBlock = {
id: string;
type: "columnList";
props: {};
content: undefined;
children: ColumnBlock[];
};
```
While both of these act as regular blocks, there are a few additional restrictions to have in mind when working with them:
- Children of columns must be regular blocks
- Children of column lists must be columns
- There must be at least 2 columns in a column list
### Tables
[Tables](/docs/features/blocks/tables) are also different, as they contain `TableContent`. Here, each table cell is represented as an array of `InlineContent` objects:
```typescript
type TableContent = {
type: "tableContent";
rows: {
cells: InlineContent[][];
}[];
};
```
